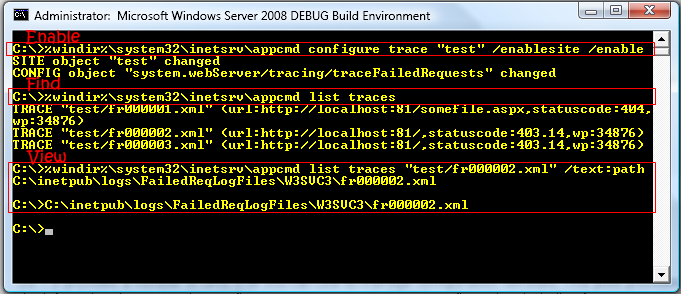

1) Open a command line window with the “Run As Administrator” option. To fly through this with the use of quick cut/paste, make sure that “QuickEdit mode” is enabled for the command line window.
2) %windir%\system32\inetsrv\appcmd configure trace "<site/url>" /enablesite /enable
This enables failed request tracing for the site, and also generates default tracing rules for the url (more on this later). You can also enable from InetMgr but I can do it faster here.
3) Make the request(s) that causes an error
4) %windir%\system32\inetsrv\appcmd list traces
This shows the list of trace files, including the urls, and status codes. Highlight the trace id of the one you want and right click to copy it. You’ll paste it below to view it.
5) %windir%\system32\inetsrv\appcmd list trace "traceid" /text:path
This will display the path to the trace XML file. Highlight the path, and right click to copy it.
6) Right click to paste the path to the XML file, and press enter. This will typically pop up the XML file in your browser, causing it to be displayed using the provided Failed Request Tracing stylesheet for quick analysis.
There are two important parts to this.
First, the appcmd configure trace command is used to enable Failed Request Tracing for the site, AND generate a default trace configuration for the url. Here is that default trace configuration:
<tracing>
<traceFailedRequests>
<add path="*">
<traceAreas>
<add provider="WWW Server" areas="Authentication,Security,Filter,StaticFile,CGI,Compression,Cache,RequestNotifications,Module" verbosity="Verbose" />
<add provider="ASP" areas="" verbosity="Verbose" />
<add provider="ISAPI Extension" areas="" verbosity="Verbose" />
<add provider="ASPNET" areas="Infrastructure,Module,Page,AppServices" verbosity="Verbose" />
</traceAreas>
<failureDefinitions timeTaken="00:01:00" statusCodes="500,400,401,403" verbosity="Warning" />
</add>
</traceFailedRequests>
</tracing>
Translation: Trace requests to all extensions for this url or any url below, that result in responses with status codes of 400,400,401, and 403, OR take more than a minute to execute, OR generate events with verbosity of Warning or above. That last clause pretty much captures any requests that set an error response code. The trace automatically includes events from all configured providers/areas at the highest verbosity level for maximum diagnostic fun.
A common task is to include non-error response codes just to see what is going on with the requests. To do that, include the /statuscodes parameter to appcmd configure trace and set it to a list of status codes you want traces, such as 200.
Second, the appcmd list trace command is used to find the trace logs you want. If you have a bunch of these, finding it through Explorer is a pain, because there is no way to tell which XML file corresponds to which url/error, so you have to open each one. With the appcmd list trace command, you can quickly examine the urls / status codes of the logs, and pick the one you want.
Failed Request Tracing log files in Explorer: Which one do I want?
You can actually use the appcmd list trace command to search for the exact log you want, filtering by the url prefix, status code, time taken, site name, application pool name, worker process id, and more. Describing how to do all of these will make for a very long post, so here is an example:
%windir%\system32\inetsrv\appcmd list traces /url:http://localhost/myapp /verb:get /timetaken:$>200
This will show all trace logs for all GET requests to urls under http://localhost/myapp that took more than 200 ms to execute.
For more info on configuring Failed Request Tracing with appcmd, look in the tool help for the appcmd configure trace and appcmd list trace commands.
Happy troubleshooting!
Mike
